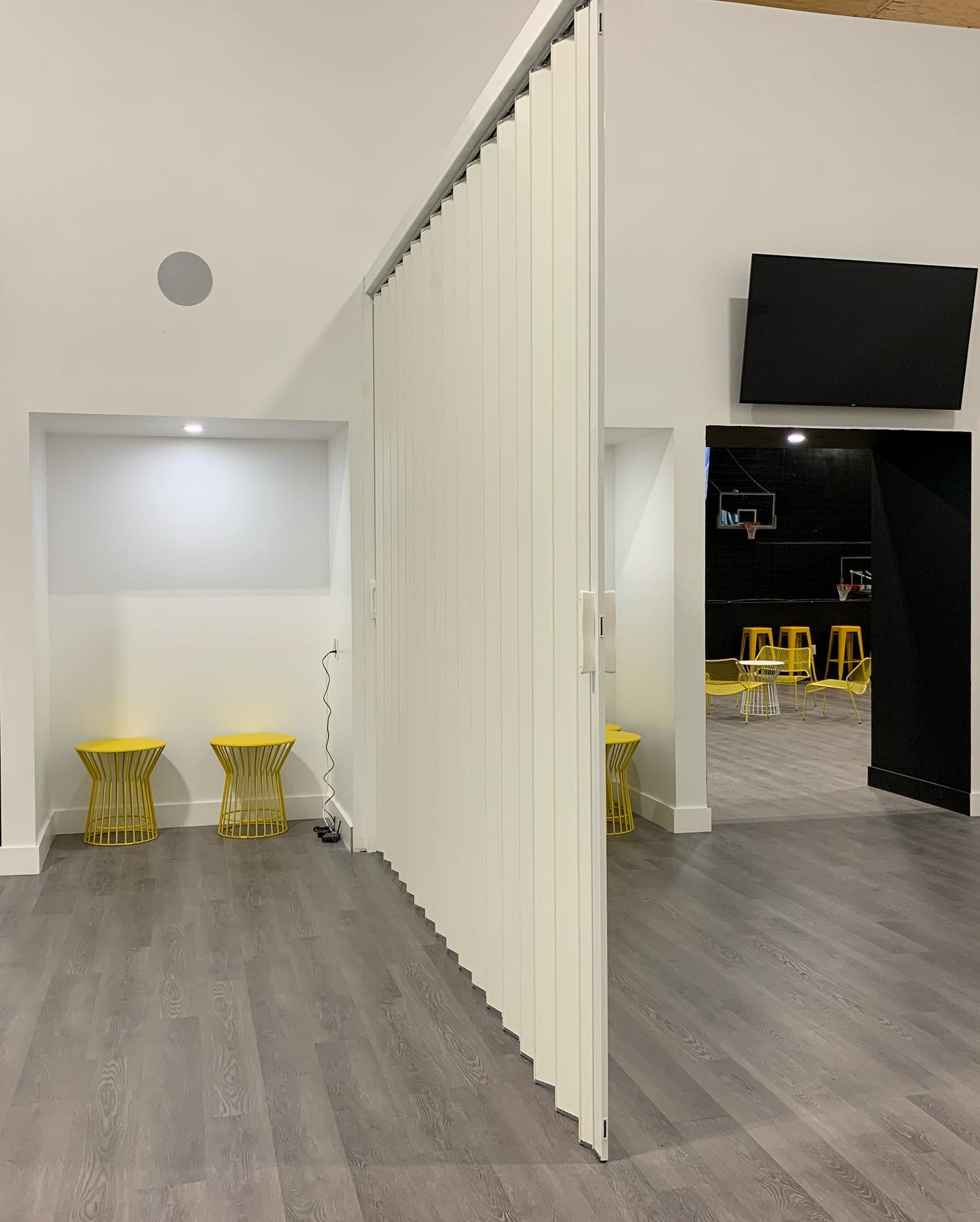

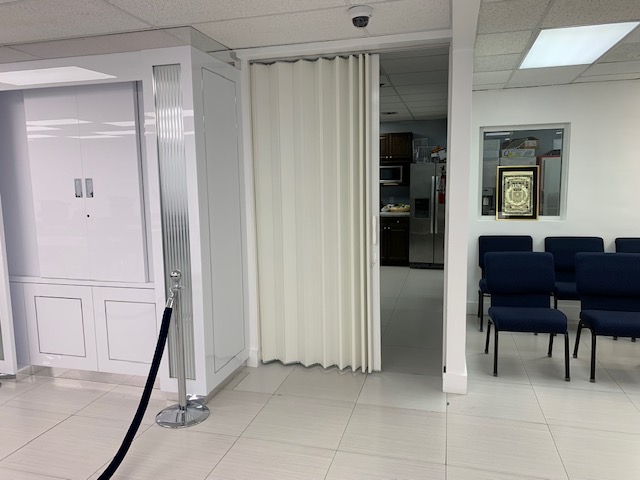

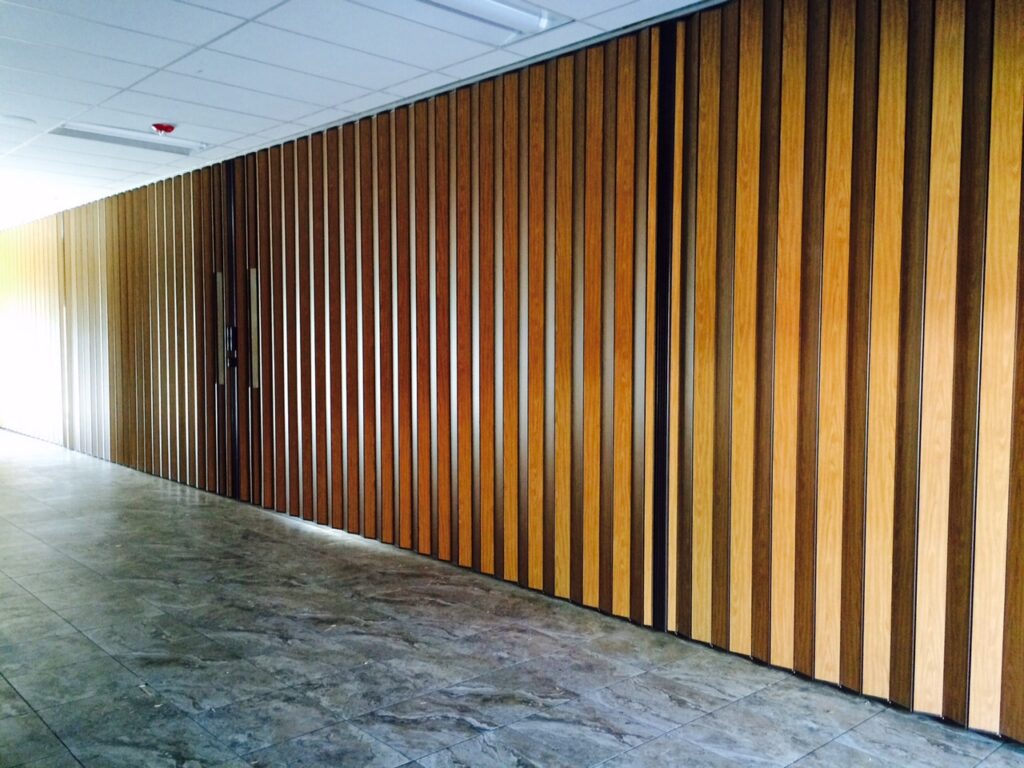

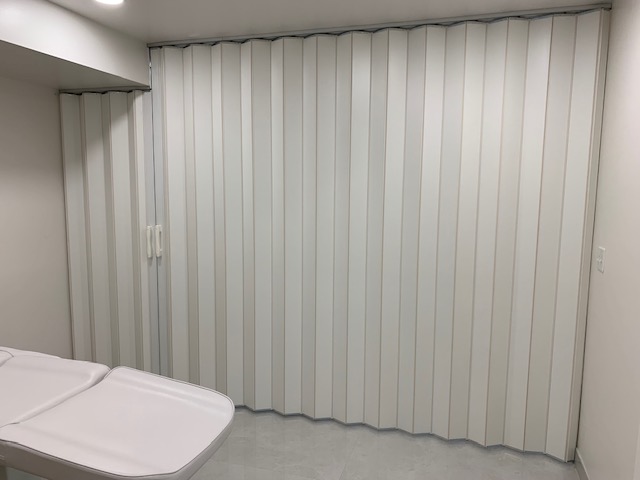

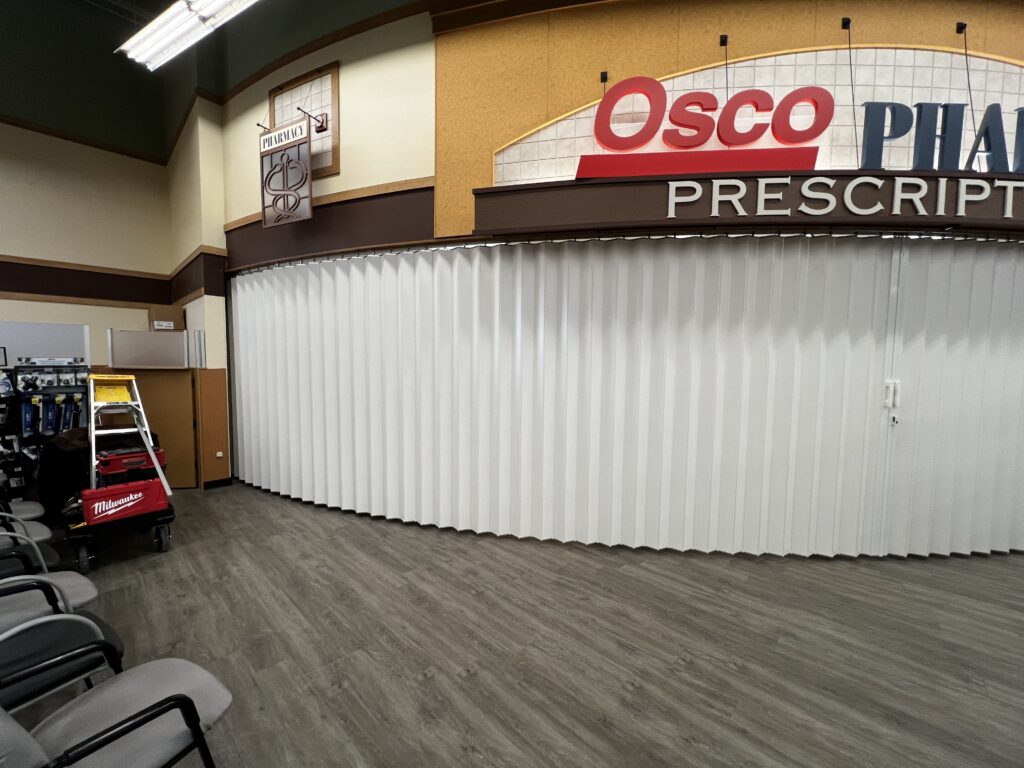

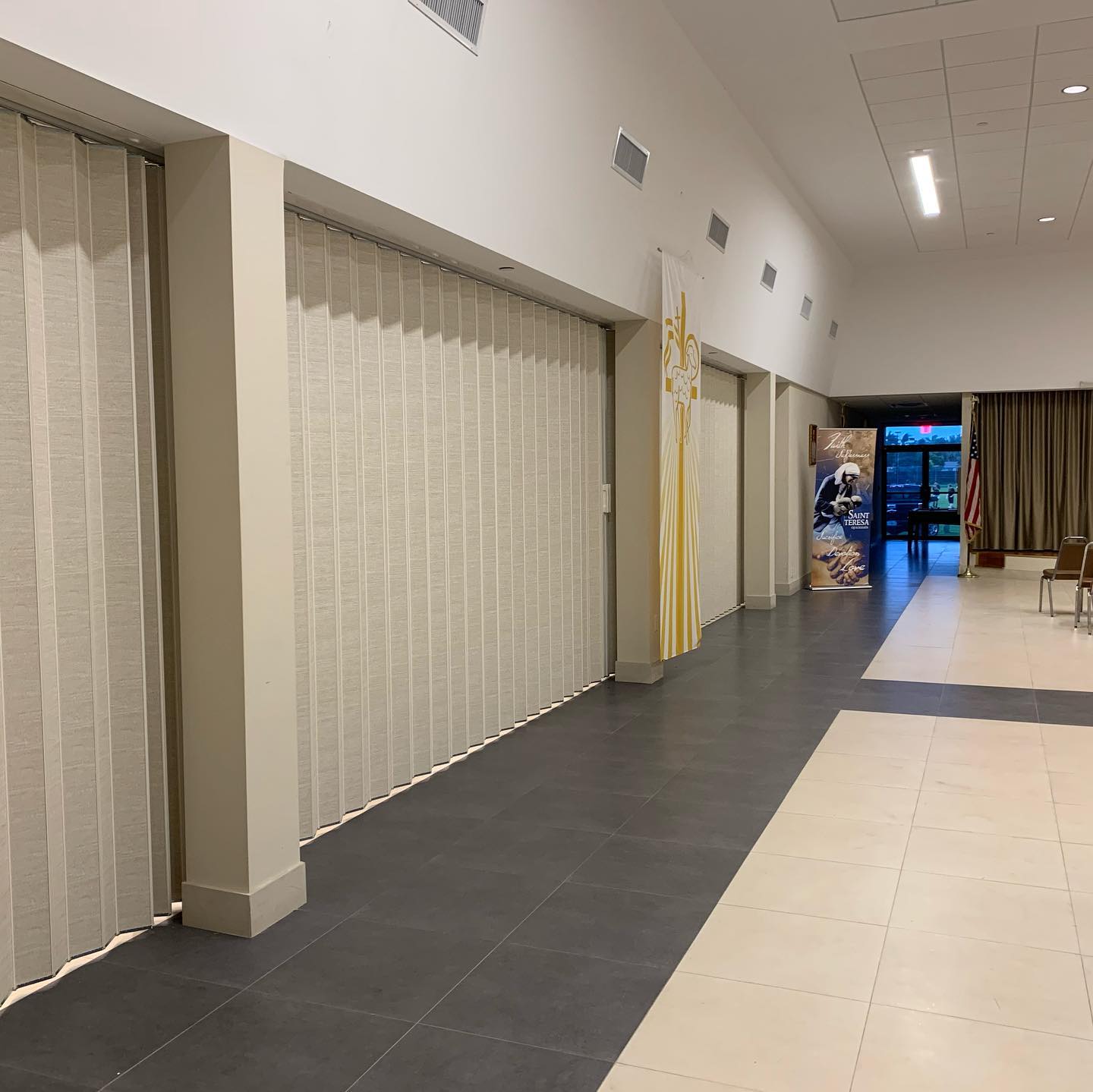

Series 240 Room Divider

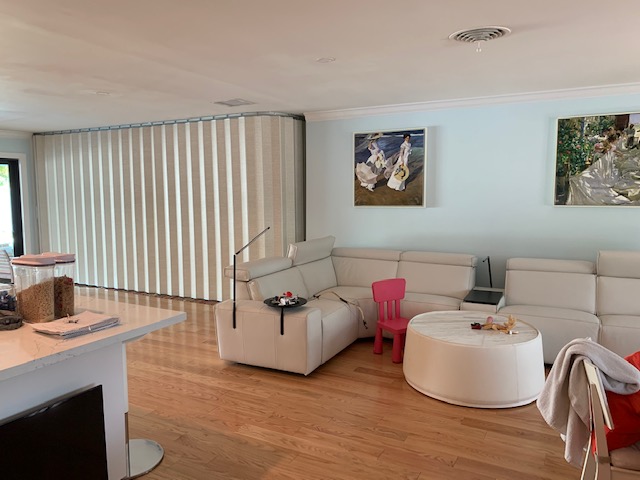

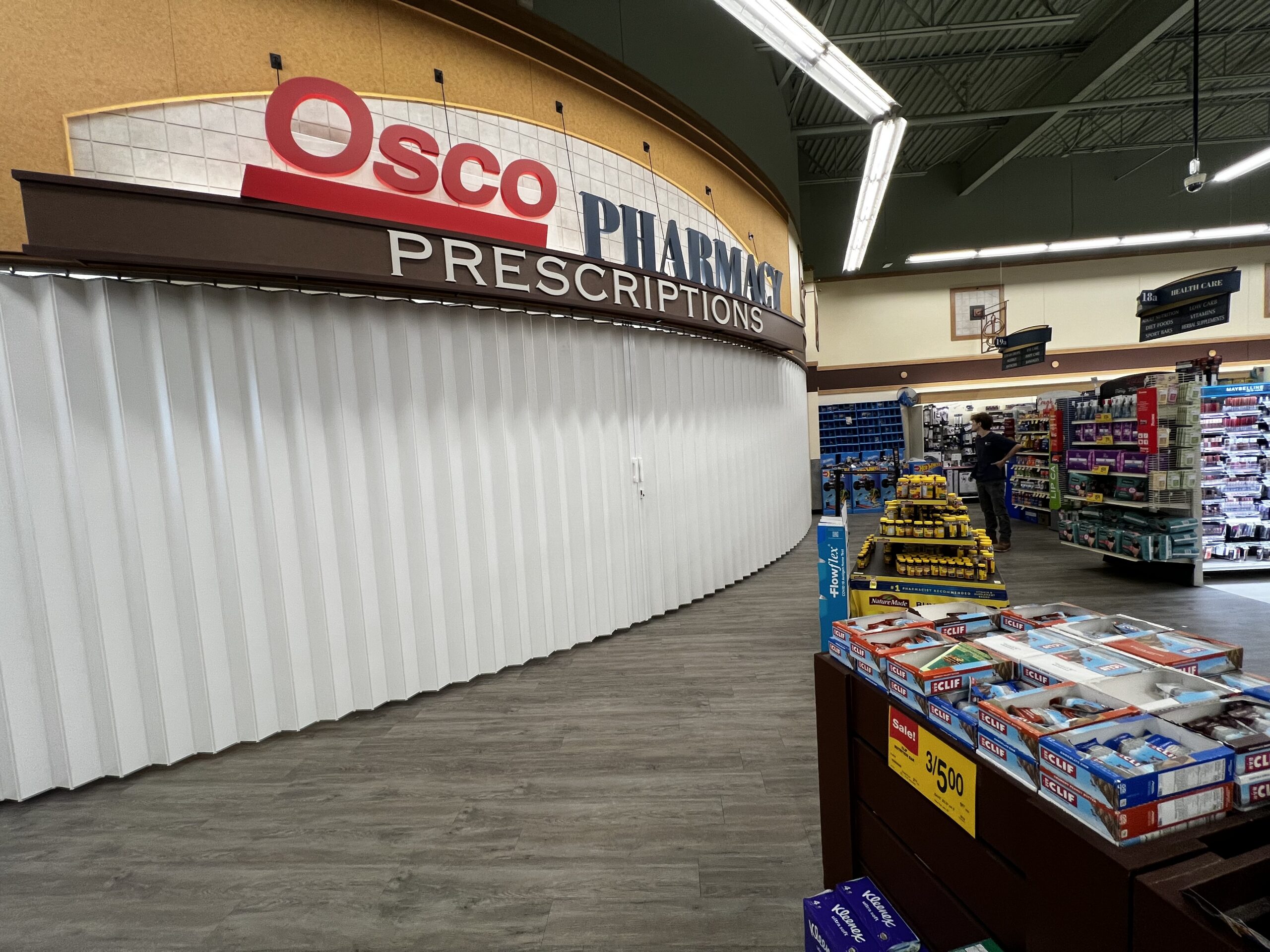

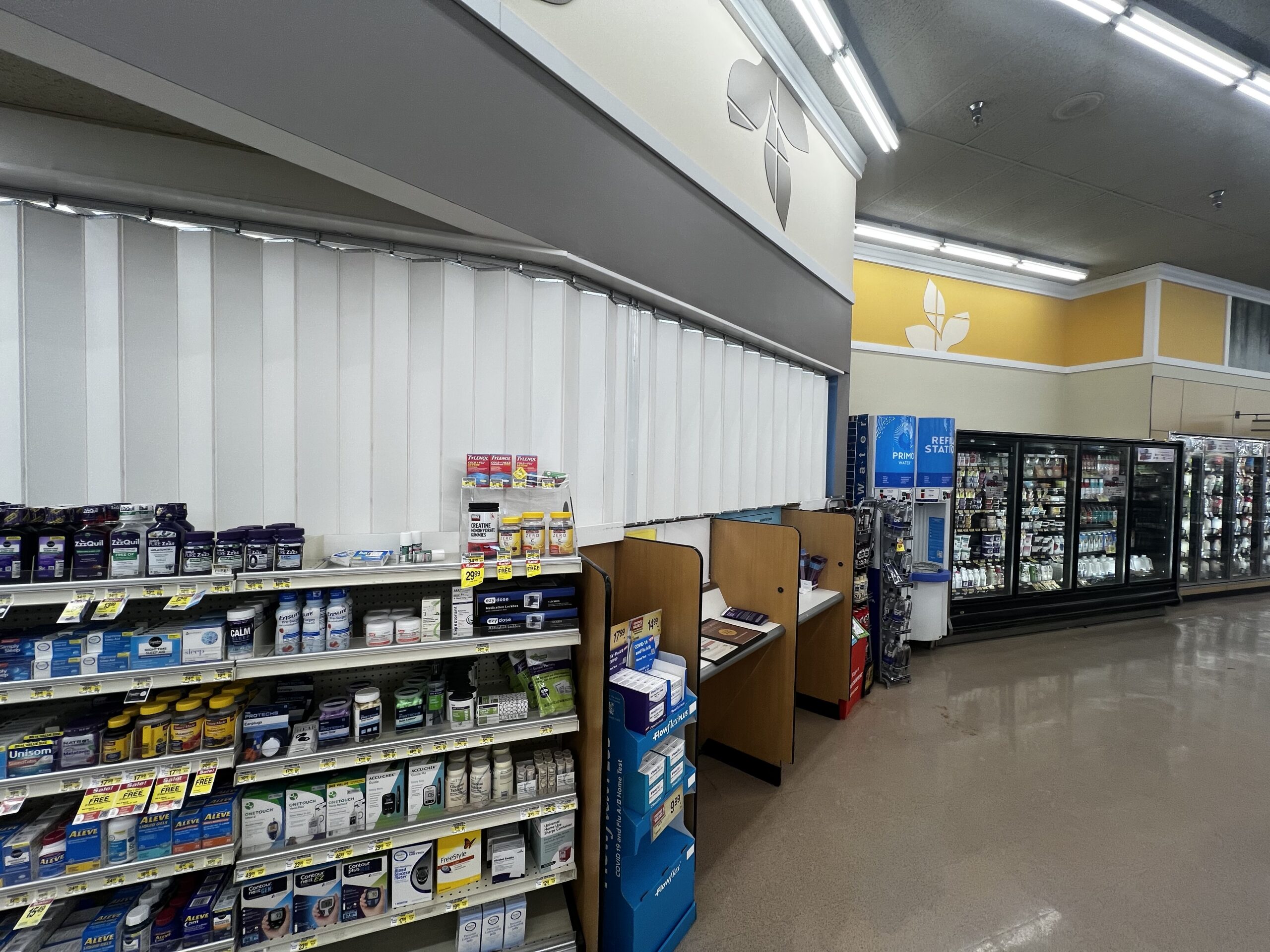

No other accordion door on the market matches the flexibility of Woodfold’s Series 240 doors, and no other is specified more often. This series delivers the high-use durability needed to successfully reconfigure space in homes, offices, schools and restaurants. Available in a wide range of contemporary finishes. Available options: curvable tracks, locks, latches, multiple meeting posts, plus finishes ranging from natural hardwoods, laminates, custom paint or stains, even applied murals (special order). The Series 240 features Woodfold’s exclusive steel hardware system that assures flawless performance with a very small footprint.

Product Specifications

  • Panels: 4¼” wide by ¼” thick; medium density fiberboard.
  • Material: MDF available in laminates and hardwood veneer faces front and back.
  • Panel Connectors: Flexible vinyl, color-coordinated to panel selection.

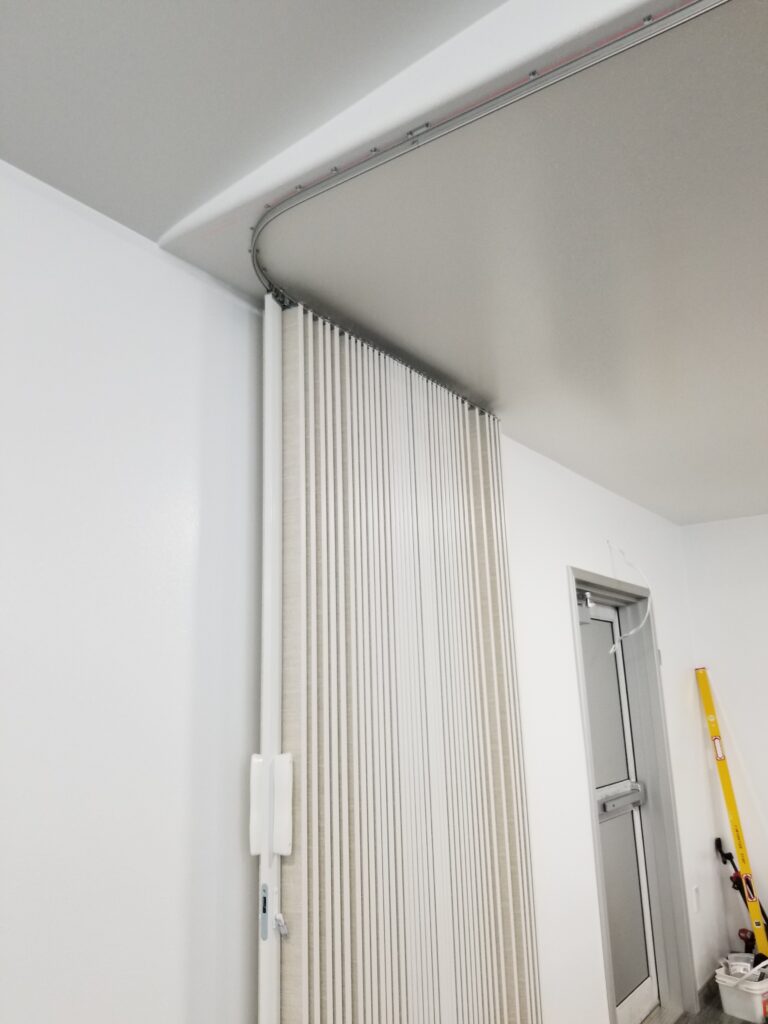

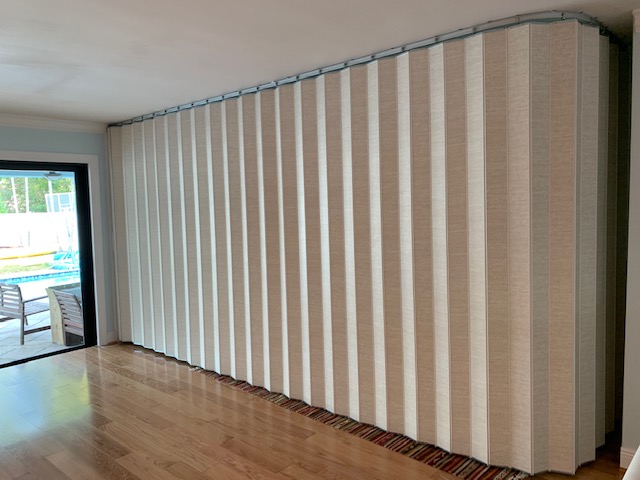

  • Track: 1-1/8″x 1″ aluminum, dark bronze or clear finish; curvable option available.
  • Wheels: Nylon wheel on steel axle with ball bearings supplied as standard.
  • Handle: Molded PVC with finger recess.
  • Lead Post: ¾” x 2¾” aluminum, color coded to panel connector.
  • Jamb Molding: 1″ wide x 3/8″ deep aluminum.
  • Latch: Deadlatch with thumbturn on both sides; keylocks or magnetic catch options available.
  • Width: Custom crafted to any width.
  • Height: Up to 10’1″.
  • Stacking Space: 1¼” per foot, plus 2¾” for each lead post.
  • Stacking Width: 5”

* Woodfold’s Series 220, 240, 440 and 540 have been tested for ADA compliance for opening load force per ADA/BOMA SEC 4.1311. Tests were conducted by MEI Charlton, Inc., Portland, OR. Certain ADA applications may call for specific handle location placement which should be specified when door is ordered.
